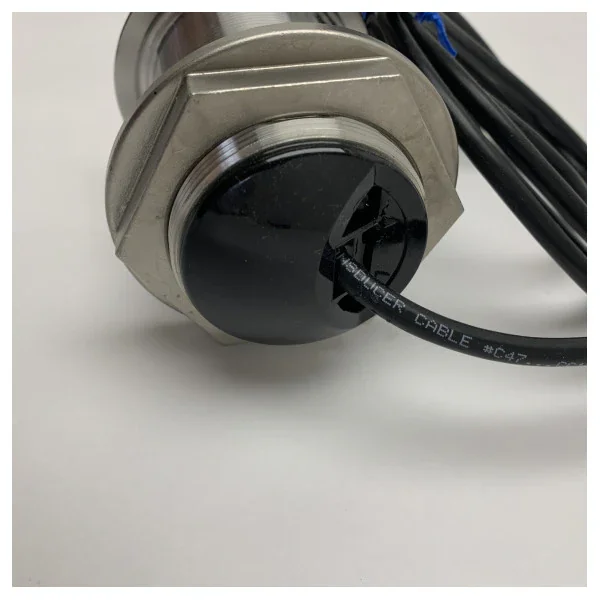

SS60 DT Durchbruchgeber - 177028

Depth and fast-response water temperature sensing
600 W of power
Dual-frequency element:
- 50 kHz with a wide 45° beamwidth for depth performance to 366 m (1200')
- 200 kHz with a 12° beamwidth for depth performance to 213 m (700')
Perfect for center-console or trailered boats
Low-profile housing extends only 5 mm (3/16") below the hull
No effect on your boat’s running performance
Stainless steel housing for use in all hull materials
Available in a bronze housing (B60) for use in a fiberglass or wood hull
Model: Airmar SS60
Acoustic Window: Urethane
Cable-Length: 10 m (33')
Common Use: Leisure/Yachting, Fishing
Connector: Furuno 10-Pin
Conventional Beam: 45°/12°
Country of Origin: USA
Cross Reference: SS60-SLTD/20
Deadrise Range: 16° to 24°
Frequency Band: 50/200 kHz
Material: Stainless Steel
Max Deadrise: Up to 24°
Max Depth: Low frequency- 366 m (1200'), High frequency- 213 m (700')
Mix and Match Series: 5-Pin 600 Watt
Mounting Style: Tilted Element Thru-Hull
Retractable housing: No
Sensor Connector: MM
Single or Dual Frequency: Conventional Dual Frequency
Tilt Angle: 20°
Tilted Element: Yes
Weight: 1.4 kg (3 lb.)
Power Rating: 600 W
Max Deadrise Angle: 24°
Functions: Depth, Temperature
Hull Material: Compatible w/ all hull materials
Max Vessel LOA: Up to 8 m (26')
Hole Size: 60 mm (2-3/8") (fiberglass or wood hull), 70 mm or 2-3" (metal hull)
Usable Shaft Length: 68.5 mm (2.70")
Display Connector: 10F

Echolot

575,00 € (inkl. Steuern)
